Actisense PRO NMEA 0183 Multiplexer

$1,024.95
No Option: No Option

Product information

PRO NMEA 0183 Multiplexer

Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.

Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.

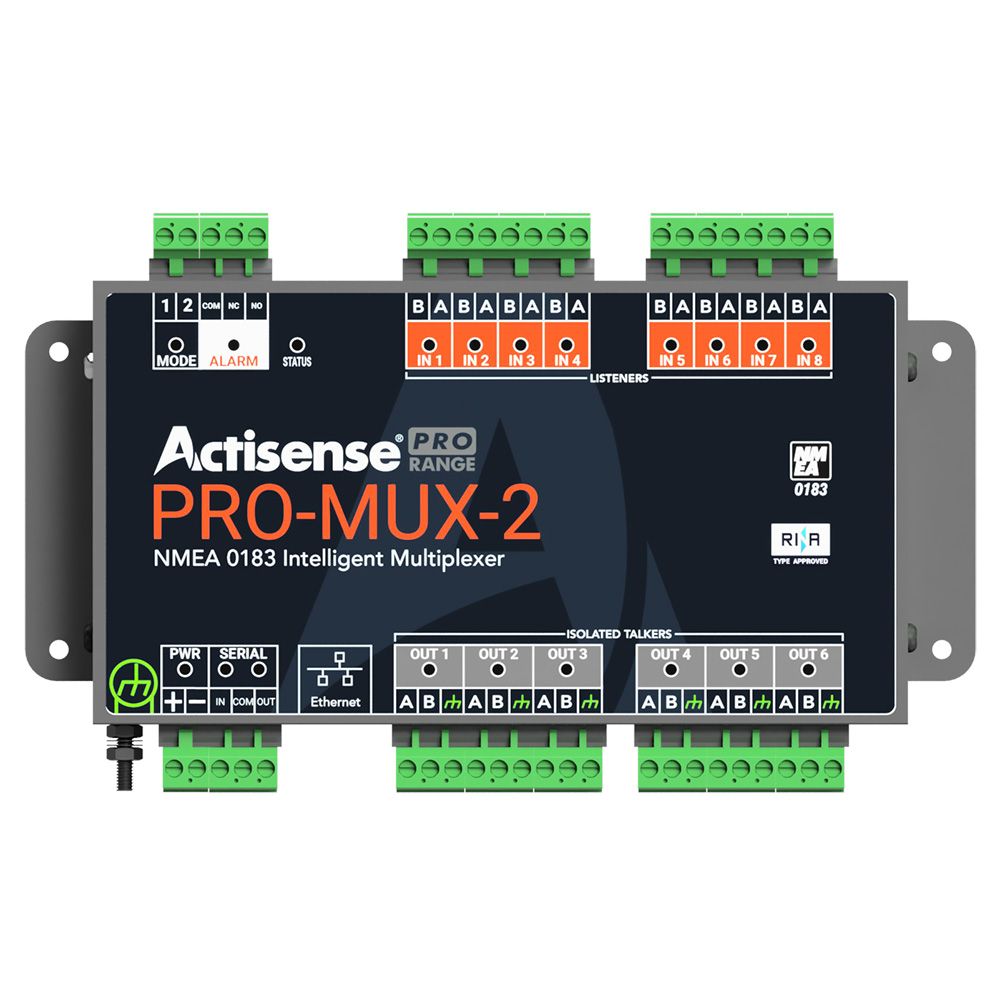

The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.

The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.

Features:

  • 8 OPTO-isolated NMEA 0183 inputs
    • 6 ISO-Drive NMEA 0183 outputs
    • Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output)
    • 0183 streaming via Ethernet
    • Alarm output (N/O and N/C contacts)
    • Designed for 12- and 24-Volt supply
    • Isolation to battery supply
    • Configurable input and output baud rates for rate conversion
    • Data combining from any input to any output
    • 2 independent Autoswitch virtual inputs with priority
    • Advanced sentence-based filtering / routing
    • Diagnostic LEDs on all inputs and outputs
    • Alarm, mode and Bi-colour Status LED’s
    • 2-part pluggable connector system supports both screw and screwless terminals
    • DIN rail or Panel mountable
    • Advanced statistics are available via a Web Browser
  • Quick and easy to install
  • Configuration using standard web browser, no PC operating system compatibility issues
  • Advanced features solve NMEA 0183 data routing problems
  • Fully isolated with ISO-Drive technology for peace of mind
  • Easy firmware updates makes the device future-proof

    • Technical Specifications:

    Power Supply

    • Input Supply Voltage - 9 to 35 V DC
    • Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
    • Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection
    • Power Indicator - LED, Blue – indicates unit is functioning correctly
    • Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)

    NMEA 0183 Port – Listener & Talker

    • Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners
    • Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers
    • Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
    • Speed / baud rate - 4800 to 38400 bps
    • Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
    • Talker Output Current Drive - 20 mA maximum per output
    • Talker Output Protection - Short circuit and ESD
    • Talker Data Indicator - LED, Orange (Flashes at data rate)
    • Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
    • Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
    • Listener Data Indicator - LED, Green (Flashes to indicate valid input)
    • Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

    Serial Port

    • Compatibility - RS422 & RS232 compatible. RS485 Listener compatible
    • Speed / baud rate - 4800 to 115200 bps
    • Output Voltage Drive - >= 2.1V (differential) into 100 ohm
    • Output Current Drive - 20 mA max.
    • Output Protection - Short circuit and ESD
    • Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
    • Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
    • Data Indicators - LED’s: Green = Receive, Orange = Transmit
    • Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

    Ethernet Port

    • Host Interface - 10/100BaseT, automatic polarity detection
    • Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
    • Indicators - Green = Link/Activity, Yellow = 100 Mbps
    • Connector - RJ45

    Isolation

    • NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V
    • NMEA 0183 Talker - Uses IsoDrive™, Hi-Pot tested to 1000V
    • Serial Port - Uses IsoDrive™, Hi-Pot tested to 1000V
    • Alarm Relay - Hi-Pot tested to 1000V
    • Ethernet Port - 2kV for 60s

    Mode Inputs

    • Input Voltage Range - 0 to 35V DC
    • Protection - Transient overvoltage and ESD protection
    • Connectors - Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG)

    Alarm Output

    • Contacts - Common, Normally Open and Normally Closed
    • Alarm Indicator - LED, Red indicates a valid alarm condition
    • Contact Ratings - 35VAC / 50VDC
    • Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

    Mechanical

    • Housing Material - 316 Stainless Steel
    • Dimensions - 210mm (W) x 128mm (H) x 27mm (D)
    • Weight - 540g
    • Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)

    Approvals and Certifications

    • Compass Safe Distance - 175mm
    • Type Approval Certificate - RINA
    • Operating Temperature - -25 to +70°C
    • Storage Temperature - -40 to +85°C
    • Relative Humidity (RH) - 95% @ 55°C
    • Environmental Protection - IP40
    • Guarantee - 5 Years
